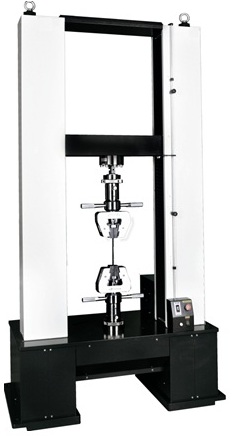

QC-501M1 COMPUTERIZED TENSILE TESTING MACHINE

ISO 7500-1 , JJG475-88 , ASTM E4 , DIN5122 , JIS B7721/B7733 , EN 10002-1,EN 1002-2, BS1610,GB T228

QC-501 & QC-502 universal test machine can meet many kinds of material tests. It has highly rigid construction and precision servo motor drive components. It can operate in stable and the machine adopts standardized design which can choose different type of test. This machine is using special testing software which can do tensile test, compression test, bending test and peeling test. The software with multi-languages is very easy to operation. It also has all kind of metric units, real-time graphs and also provides complete analysis test data which finish test can do variety of material analysis.

Liên hệ: (024) 8587 8169

 Specs



 Description

 Max. capacity



 300 KN

http://www.come-tech.com.tw/images/lineb.gif

 Force Resolution



 1/10,000

http://www.come-tech.com.tw/images/lineb.gif

 Hardware safety protection



 Up/down limit, emergency stop button

http://www.come-tech.com.tw/images/lineb.gif

 Motor type



 Servo drive

http://www.come-tech.com.tw/images/lineb.gif

 Transmission



 Precision reducer, ball screw which can



 significantly reduce the noise and transmission



 losses, increase the transmission efficiency.

http://www.come-tech.com.tw/images/lineb.gif

 Power Supply



 3 phase 200~240VAC,30A

http://www.come-tech.com.tw/images/lineb.gif

 Dimension



 140 × 70 × 235 cm

http://www.come-tech.com.tw/images/lineb.gif

 Weight



 1250 kg

http://www.come-tech.com.tw/images/lineb.gif

 PC-Port



 TCP/IP

http://www.come-tech.com.tw/images/lineb.gif

 Weight



 1250 kg

http://www.come-tech.com.tw/images/lineb.gif

 PC-Port



 TCP/IP

http://www.come-tech.com.tw/images/lineb.gif

 Hardware safety protection



 Up/down limit, emergency stop button

http://www.come-tech.com.tw/images/lineb.gif

 Motor type



 Servo drive

http://www.come-tech.com.tw/images/lineb.gif

 Transmission



 Precision reducer, ball screw which can



 significantly reduce the noise and transmission



 losses, increase the transmission efficiency.

http://www.come-tech.com.tw/images/lineb.gif

 Power Supply



 3 phase 200~240VAC,30A

http://www.come-tech.com.tw/images/lineb.gif

 Dimension



 140 × 70 × 235 cm

http://www.come-tech.com.tw/images/lineb.gif

 Stroke (without grips)



 1100 mm

http://www.come-tech.com.tw/images/lineb.gif

 Stroke resolution



 0.001 mm

http://www.come-tech.com.tw/images/lineb.gif

 Space between columns



 550 mm

http://www.come-tech.com.tw/images/lineb.gif

 Speed range



 0.08 ~ 333 mm/min

http://www.come-tech.com.tw/images/lineb.gif

 Speed precision



 0.08 ~ 333 mm/min ± 3%
